Crime Scene Investigation Series

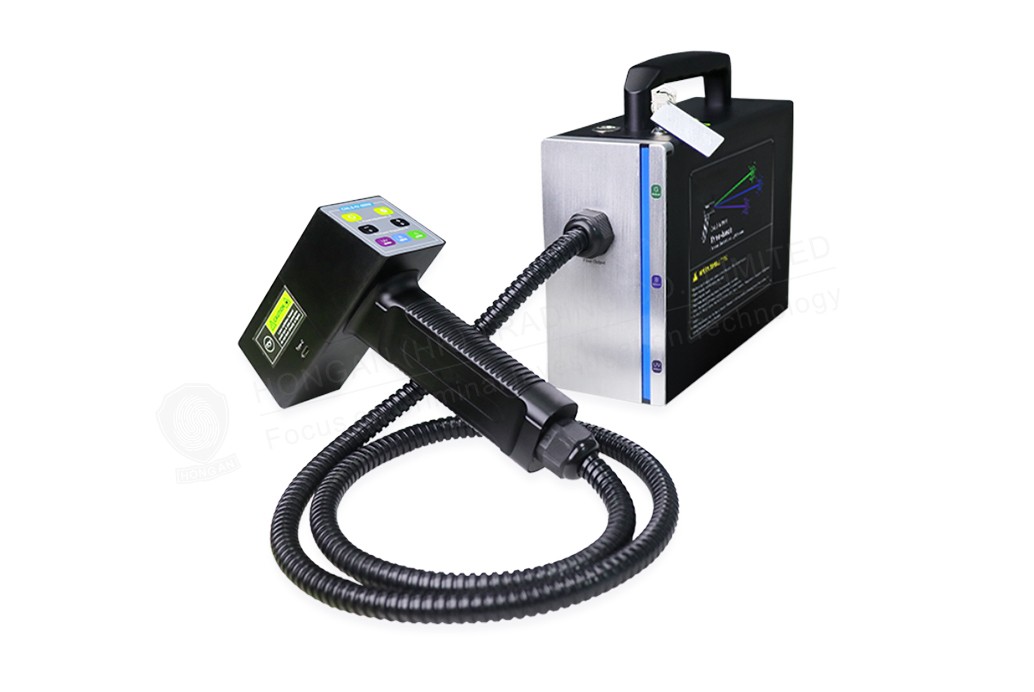

Evidence Search Laser Instrument
Model:CNLS-IV-MINI
The most compact benchtop laser instrument to search evidence with safety switch
The most compact benchtop laser instrument to search evidence with safety switch
Introduction
Parameters
Outpur Power:
UVB(365nm): 5W Blue Laser(445nm): 20W Green Laser(532nm): 7W
Reagent:
Harmless water-soluable physical liquid
Available Wavelengths:
UVB(365nm): body fluids(semen, saliva, urine, etc.), Blue Laser(445nm): body fluids, bone fragments, gunshot residues and traces of physical evidence (glass, fibres, hairs, etc.). Green Laser(532nm): inspection materials(treated with Indandione, DFO etc.)
Accessories:
Host*1 Reagent fumigator*1 Reagent Kit*2 Goggles*1 Color Filter*1
Spot Size:
30-50cm ( Beam: 35mm in diameter at 1 meter)
Previous：Fingerprint Target Laser System
Next：Handprint Intelligent Shooting System
